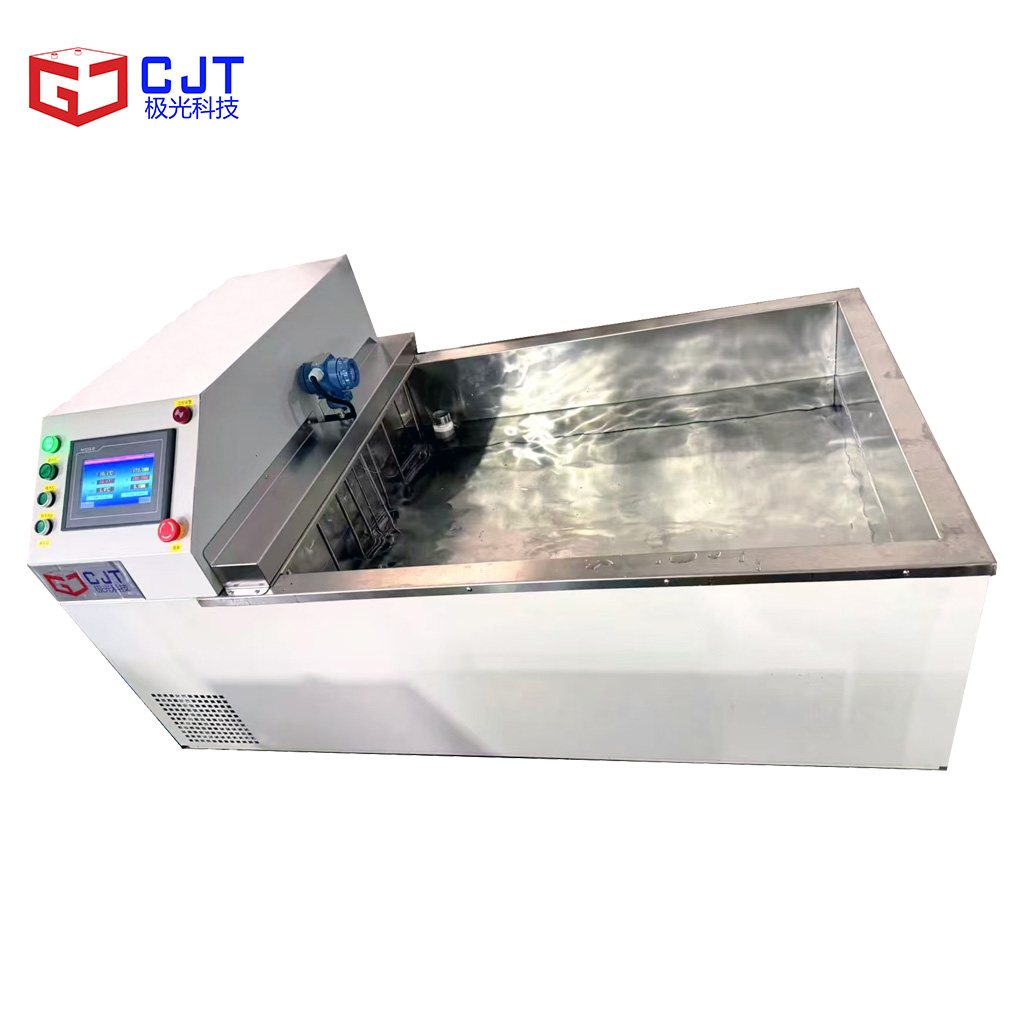

Constant temperature Lab. water bath
Application: Used for loading the battery in the water bath and keeping fixed temperature during battery Lab. testing.
1.Technical parameter:
1.1 Workroom size:L 1000×W 800×H 300（mm）
1.2 Outer size：L 1500×W 1000×H 1000（mm）
1.3 Bath opening size：1000×800（mm）
1.4 Temperature range:+20℃～+80℃
1.5 Constant temperature fluctuation：≤0.5℃
1.6 Homogeneity：≤0.5℃
1.7 Display resolution:0.1℃
1.8 Set resolution:0.1℃
1.9 Flow：50L/MIN
1.10 Level Control Range：0～300mm
1.11 Control deviation ：±≤5mm
1.12 Rack ：1PC
1.13 Operate mode：Consecutive
1.14 Total power：12KW（Heating power 12KW）（ Heating tube by Teflon treatment）
1.15 Power supply：380V±10％ 50HZ
