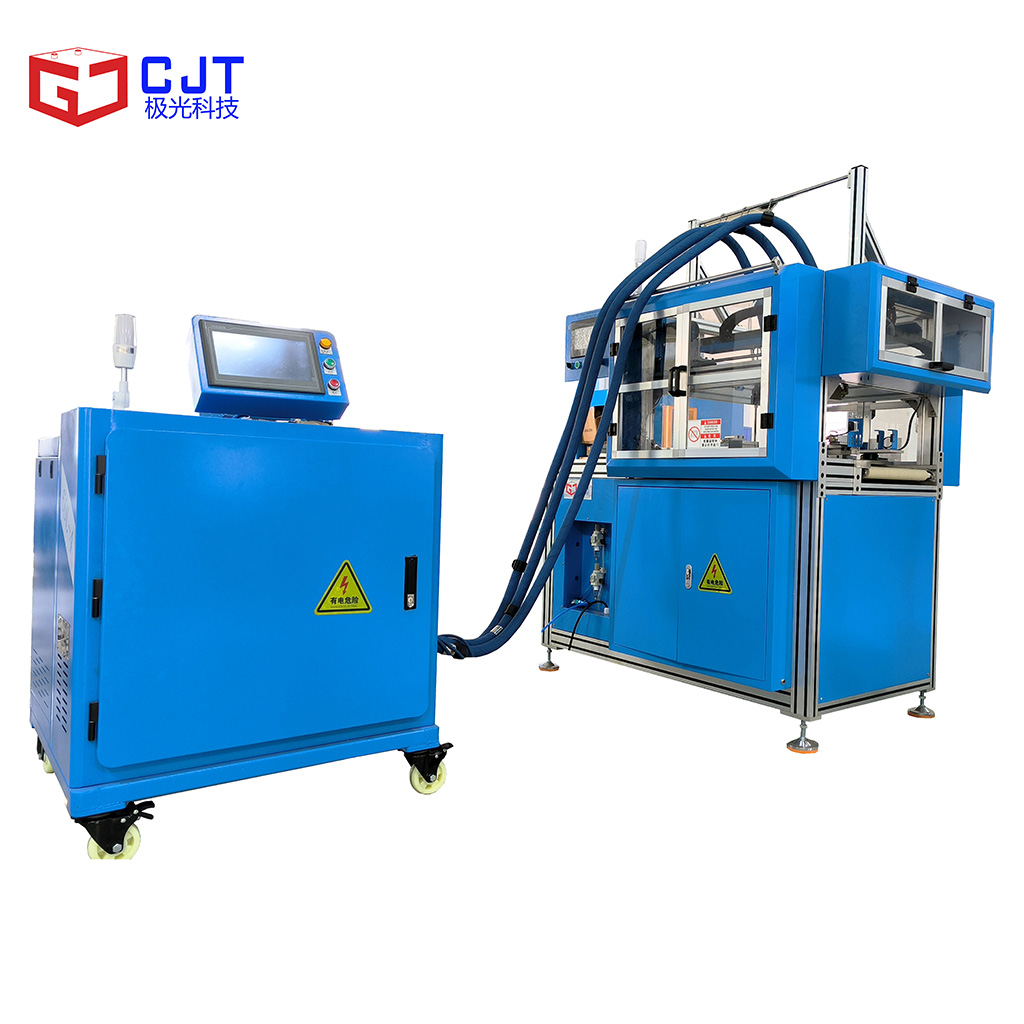

Hot melt glue dispensing machine
1. Summary
1.1 Gluetesting function: separate button test glue dispensing
1.2 Gluedispensing methods: spot, strip, scraping, etc
1.3 Airsupply：0.5-0.7mPa
1.4 Powersupply：AC380V 50HZ 18KW
1.5 Dispensingspeed: ＞ 10g/s
1.6 Temperaturecontrol range：0-200°C
2. Equipment composition and principle：
2.1 The equipment is mainly composed of thefollowing parts:
2.1.1 Machine frame components: square tubewelded frame, appearance baking paint treatment；
2.1.2 Three-axis manipulator;；
2.1.3 Independent return valve and divergentseat;；
2.1.4 30L hot melt glue supply system；
2.1.5 Automatic electrical control components
2.2 Principle:：
The machineis controlled and operated by PLC, which can be set and called byhuman-computer interaction and parameters of each model, and the gluedispensing system is quantitatively dispensed by the hot melt glue supplysystem, and the dispensing operation is carried out by the high-flow dispensingvalve.
